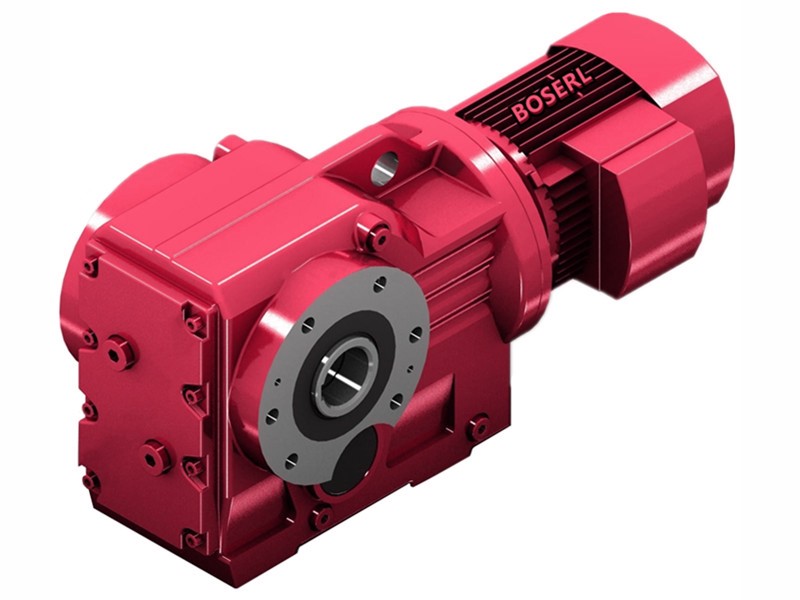

KA188減速電機詳細信息
KA188減速電機
KA188減速電機選型計算：齒輪減速馬達
混泥土攪拌罐參數：攪拌罐負載9400公斤，攪動14圈/每分鐘，攪動齒輪直徑156
電機轉數1400÷14圈（輸出轉速）=減速比100
攪拌9400公斤混泥土=92120N
92120N×0.078攪動齒輪半徑=7185.36×3攪拌泥狀物料扭矩放大三倍=21556.08N.m
21556.08N.m÷100減速比=215.56N.m電機扭矩
215.56N.m電機扭矩換算成功率34.22KW以上
對應的KA188減速機選型參數：
型號：KA188-BVP37KW
減速比：102.16
輸出轉數：14轉每分鐘
輸出扭矩：24400N.m
安全系數：2

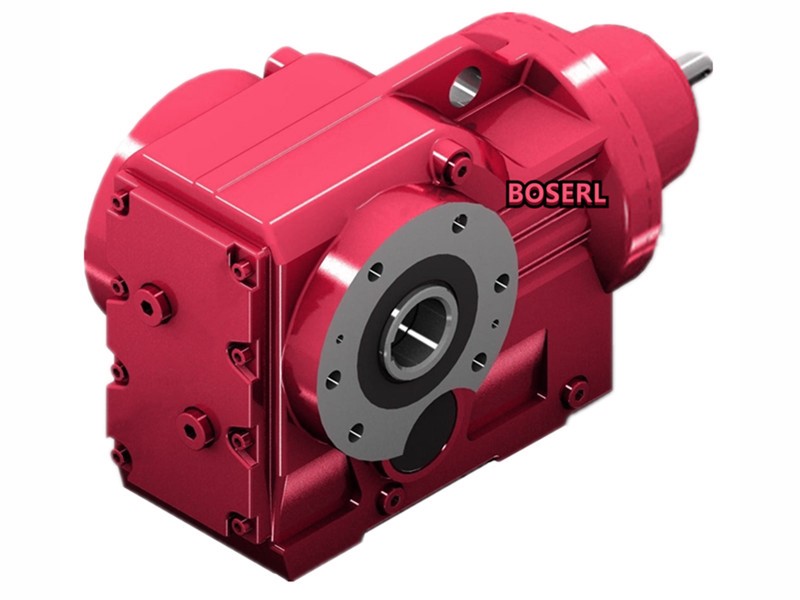

KA188減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）空心軸減速機
KA188斜齒輪錐齒輪減速機型號：
KA188減速電機型號參數：直角減速機
KA188減速機配30KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y30KW | 30KW | 8.2rpm | 34900N.m | 1.45 |
| K187Y30KW | 30KW | 8.9rpm | 32100N.m | 1.55 |
| K187Y30KW | 30KW | 10rpm | 28100N.m | 1.8 |
| K187Y30KW | 30KW | 11rpm | 25200N.m | 2 |
| K187Y30KW | 30KW | 13rpm | 21900N.m | 2.2 |
| K187Y30KW | 30KW | 14rpm | 19800N.m | 2.5 |
| K187Y30KW | 30KW | 17rpm | 17100N.m | 2.9 |
KA188減速機配37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y37KW | 37KW | 8.2rpm | 43200N.m | 1.15 |
| K187Y37KW | 37KW | 8.9rpm | 39700N.m | 1.25 |
| K187Y37KW | 37KW | 10rpm | 34700N.m | 1.45 |
| K187Y37KW | 37KW | 11rpm | 31100N.m | 1.6 |
| K187Y37KW | 37KW | 13rpm | 27000N.m | 1.85 |
| K187Y37KW | 37KW | 14rpm | 24500N.m | 2 |
| K187Y37KW | 37KW | 17rpm | 21100N.m | 2.4 |
KA188減速機配45KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y45KW | 45KW | 8.2rpm | 52200N.m | 0.95 |
| K187Y45KW | 45KW | 8.9rpm | 47900N.m | 1.05 |
| K187Y45KW | 45KW | 10rpm | 41900N.m | 1.2 |
| K187Y45KW | 45KW | 11rpm | 37600N.m | 1.35 |
| K187Y45KW | 45KW | 13rpm | 32600N.m | 1.55 |
| K187Y45KW | 45KW | 14rpm | 29600N.m | 1.7 |
| K187Y45KW | 45KW | 17rpm | 25500N.m | 1.95 |
| K187Y45KW | 45KW | 20rpm | 21400N.m | 2.3 |
KA188減速機配55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y55KW | 55KW | 10rpm | 51400N.m | 0.95 |
| K187Y55KW | 55KW | 11rpm | 46100N.m | 1.1 |
| K187Y55KW | 55KW | 13rpm | 40000N.m | 1.25 |
| K187Y55KW | 55KW | 14rpm | 36300N.m | 1.35 |
| K187Y55KW | 55KW | 17rpm | 31300N.m | 1.6 |
| K187Y55KW | 55KW | 20rpm | 26300N.m | 1.9 |
| K187Y55KW | 55KW | 23rpm | 22800N.m | 2.2 |
KA188減速機配75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y75KW | 75KW | 11rpm | 62700N.m | 0.8 |
| K187Y75KW | 75KW | 13rpm | 54400N.m | 0.9 |
| K187Y75KW | 75KW | 14rpm | 49400N.m | 1 |
| K187Y75KW | 75KW | 17rpm | 42500N.m | 1.15 |
| K187Y75KW | 75KW | 20rpm | 35700N.m | 1.4 |
| K187Y75KW | 75KW | 23rpm | 30900N.m | 1.6 |
| K187Y75KW | 75KW | 28rpm | 25800N.m | 1.95 |
| K187Y75KW | 75KW | 33rpm | 22000N.m | 2.3 |
KA188減速機配90KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y90KW | 90KW | 14rpm | 59300N.m | 0.85 |
| K187Y90KW | 90KW | 17rpm | 51100N.m | 1 |
| K187Y90KW | 90KW | 20rpm | 42900N.m | 1.15 |
| K187Y90KW | 90KW | 23rpm | 37100N.m | 1.35 |
| K187Y90KW | 90KW | 28rpm | 30900N.m | 1.6 |
| K187Y90KW | 90KW | 33rpm | 26400N.m | 1.9 |
| K187Y90KW | 90KW | 35rpm | 24600N.m | 2 |
| K187Y90KW | 90KW | 38rpm | 22300N.m | 2.2 |
KA188減速機配110KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y110KW | 110KW | 17rpm | 62300N.m | 0.8 |
| K187Y110KW | 110KW | 20rpm | 52300N.m | 0.95 |
| K187Y110KW | 110KW | 23rpm | 45300N.m | 1.1 |
| K187Y110KW | 110KW | 28rpm | 37700N.m | 1.3 |
| K187Y110KW | 110KW | 33rpm | 32200N.m | 1.55 |
| K187Y110KW | 110KW | 35rpm | 30100N.m | 1.65 |
| K187Y110KW | 110KW | 38rpm | 27300N.m | 1.85 |
| K187Y110KW | 110KW | 45rpm | 23500N.m | 2.1 |
| K187Y110KW | 110KW | 53rpm | 19700N.m | 2.5 |
KA188減速機配132KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y132KW | 132KW | 20rpm | 62700N.m | 0.8 |
| K187Y132KW | 132KW | 23rpm | 54300N.m | 0.95 |
| K187Y132KW | 132KW | 28rpm | 45200N.m | 1.1 |
| K187Y132KW | 132KW | 33rpm | 38600N.m | 1.3 |
| K187Y132KW | 132KW | 35rpm | 36000N.m | 1.4 |
| K187Y132KW | 132KW | 38rpm | 32700N.m | 1.55 |
| K187Y132KW | 132KW | 45rpm | 28200N.m | 1.75 |
| K187Y132KW | 132KW | 53rpm | 23700N.m | 2.1 |
| K187Y132KW | 132KW | 61rpm | 20500N.m | 2.3 |
| K187Y132KW | 132KW | 74rpm | 17100N.m | 2.6 |
| K187Y132KW | 132KW | 86rpm | 14500N.m | 2.8 |
KA188減速機配160KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y160KW | 160KW | 28rpm | 54900N.m | 0.9 |
| K187Y160KW | 160KW | 33rpm | 46800N.m | 1.05 |
| K187Y160KW | 160KW | 45rpm | 34200N.m | 1.45 |
| K187Y160KW | 160KW | 53rpm | 28700N.m | 1.75 |
| K187Y160KW | 160KW | 61rpm | 24800N.m | 1.9 |
| K187Y160KW | 160KW | 74rpm | 20700N.m | 2.1 |
| K187Y160KW | 160KW | 86rpm | 17600N.m | 2.3 |
KA188減速機配200KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K187Y200KW | 200KW | 33rpm | 58600N.m | 0.85 |
| K187Y200KW | 200KW | 45rpm | 42800N.m | 1.15 |
| K187Y200KW | 200KW | 53rpm | 35900N.m | 1.4 |
| K187Y200KW | 200KW | 61rpm | 31100N.m | 1.55 |
| K187Y200KW | 200KW | 74rpm | 25900N.m | 1.7 |
| K187Y200KW | 200KW | 86rpm | 22100N.m | 1.85 |
KA188減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K188減速機
關鍵詞:通孔減速機型一體式_空心軸減速機配電機_直角中空減速機_中孔輸出減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速馬達型號：KA38減速機,KA48減速機,KA58減速機,KA68減速機,KA78減速機,KA88減速機,KA98減速機,KA108減速機,KA128減速機,KA158減速機,KA168減速機,KA188減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KA188減速電機 KA187斜齒輪錐齒輪減速機 KA187減速機功率 KA187減速機基座尺寸 KA187減速機模型 KA187減速機型號參數
